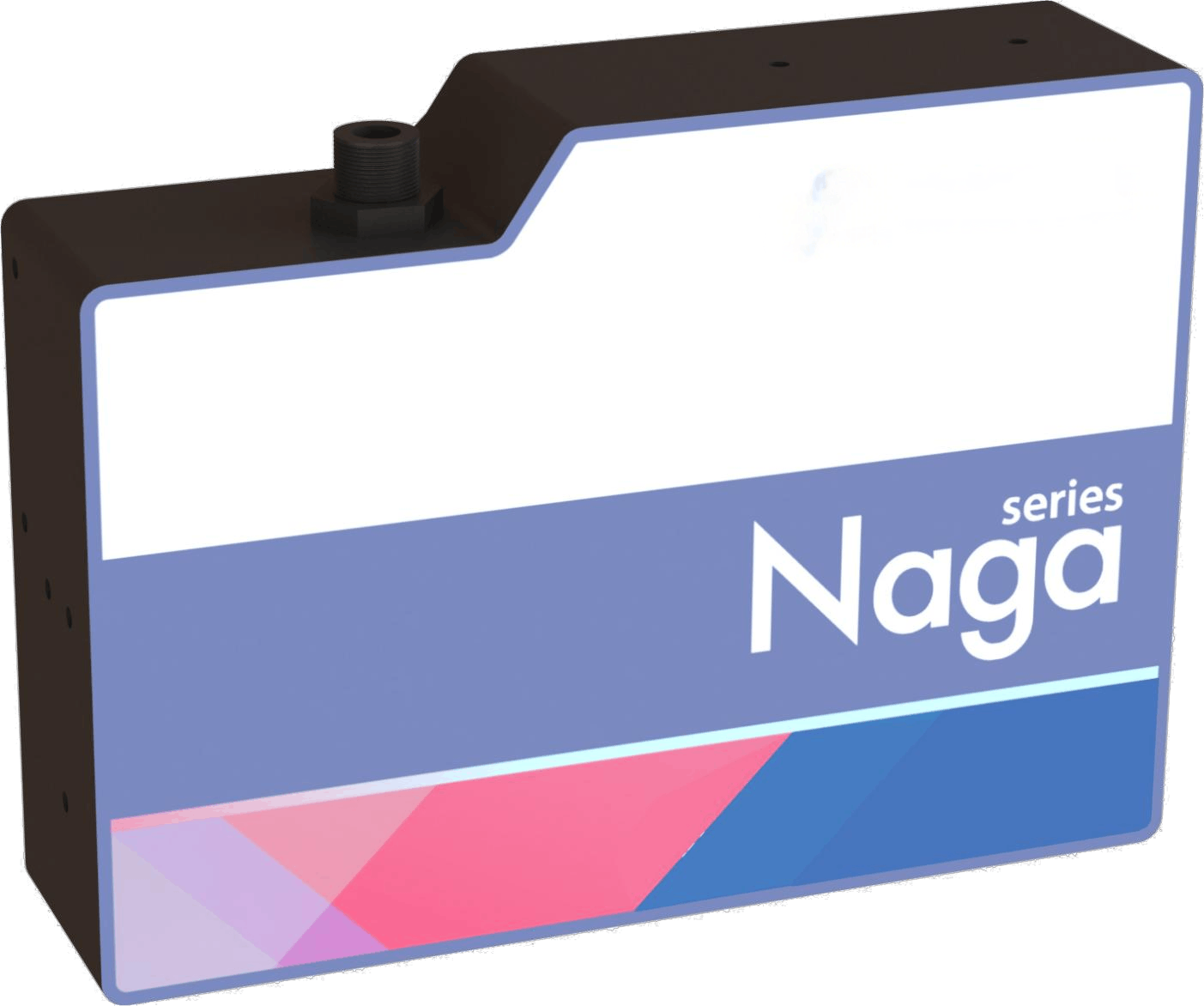

NAGA Series Miniature Modular Spectrometer
The Naga Miniature Modular Spectrometer is a compact and customizable solution designed for handheld spectral detection devices. Featuring an external circuit board for seamless instrument integration, it supports measurements across the UV-VIS-NIR spectral range.
Equipped with pre-configured SMA905 fiber optic and USB 2.0 interfaces, it ensures plug-and-play functionality while offering customizable options to meet diverse user requirements.
NAGA Series
—Miniature Modular Spectrometer
Tailored for Handheld Spectral Detection Devices
A modular product custom-designed for handheld spectral detection devices.
■ External circuit board for better compatibility with instrument integration.
■ Supports measurements across the UV-VIS-NIR spectral range.
■ Pre-configured with an SMA905 standard fiber optic interface and USB 2.0 communication interface.
■ Customizable to meet specific user requirements.
522KB
| PARAMETER | Value |
| Optical configuration | Cross Czerny-Turner configuration |
| Detection range | 185 nm – 1100 nm |
| Optical resolution | 1.4 nm – 1.8 nm (with 25 μm slit) |
| F-number | 4 |
| Focal length | 68 mm |
| PARAMETER | Value |
| Integration time | 0.5ms – 10 s |
| Linearity | ≥0.998 |
| Dynamic range | 2.0×10E+8(system) / 1300:1 (single acquisition) |
| Signal-to-noise ratio | 300:1 (full signal) |
| A/D resolution | 16-bit |
| PARAMETER | Value |
| Communication interface | USB 2.0 I/O |
| Fiber optic interface | SMA905 |
| Operating system | Windows 7/10/11 |
| PARAMETER | Value |
| Dimensions | 88 mm × 64 mm × 23 mm |
| Weight | 200 g |
